High Speed Intelligent 4 and 6 Corner Folder Gluer
This machine adopts double frequency conversion independent control drive. The paper inlet belt automatically takes out the paper, and the paper outlet is equipped with a light eye automatic control to start and stop the machine.
Product Details
ZH-M1050 4/6 Corner Automatic Folder Gluer
1. Characteristics:
This machine adopts double frequency conversion independent control drive. The paper inlet belt automatically takes out the paper, and the paper outlet is equipped with a light eye automatic control to start and stop the machine. According to the thickness of the paperboard, the flattening part can automatically press the paperboard until it is output from the flattening belt. After output, the carton can be packed directly.
2. Main technical parameter:
Model | ZH-M1050 4/6 Corner |
Suitable material | Card board 210-850gsm,N/E/F/B flute corrugated board |
Max method | Automatic continuous feeding |
Max mechanical speed | 350m/min |
Overall dimension | 19000*1900*1650mm |
Weight | 11T |
Power consumption | 20KW,380V,50HZ |
3.Machine configuration
Main motor | GPG Taiwan |
PLC | Siemens |
Inverter | Siemens |
Touch screen | Siemens |
Timing belt and pulley | Optibelt german |
Bearing | NSK |
Main axis | Taiwan chrome plated steel bar |
Wall thickness | 20mm tempered |
Plain belt | NITTA Japan |
Low voltage apparatus | Schneider |
Fasten bolts | Level 12.9 Taiwan |
Air cylinder | AIR TAC Taiwan |
Button | Schneider |

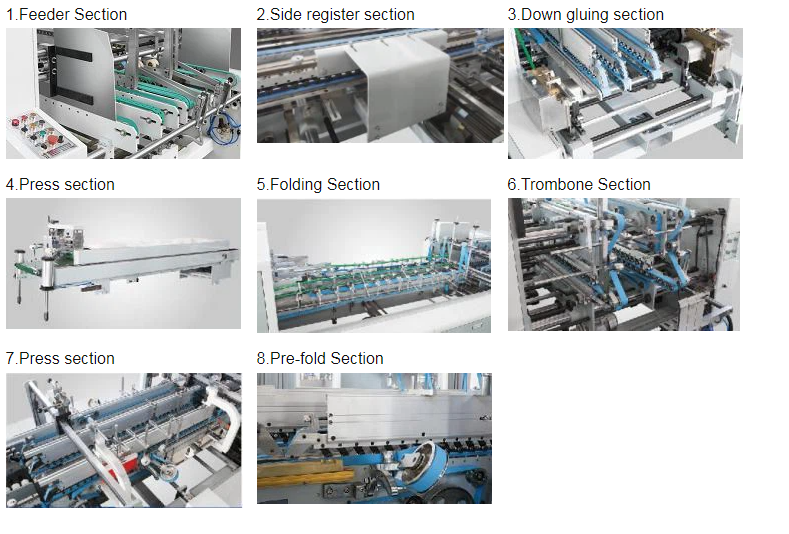

4.Standard & Optional configuration list
Configuration | Units | Standard | Optional | |
1 | Feeder section | √ | ||
2 | Paper Alignment Section | √ | ||
3 | Pre-fold Section | √ | ||
4 | Crash lock bottom section | √ | ||
5 | Down pasting equipment | √ | ||
6 | Gluing system | √ | ||
7 | Grinder device | √ | ||
8 | Plasma treatment system | √ | ||
9 | Folding and closing section | √ | ||
10 | Trombone section | √ | ||
11 | 4-6 corner | √ |
5.Feature:
Suitable for micro corrugated paper boxs for hardware(flute E/F/N).
180° for the first creasing line,135° for the third line more suitable for paper boxes which needs to be pre-folded,especially for those medicine,wine boxes to be running on automatic packaging flow line and need easy opening and forming.
Plasma system ( optional ).
Glue – spraying system ( optional ).
Automatic carton folder gluer machine GDHH800 are suitable all kinds of cosmetic box, wine box and the CD, document boxes, edged-medicine box etc.
ZH-1050 | ||||||
| Straight line box | Double sides box | Crash-lock bottom box | 4-corner box | 6-corner box | |
A | MAX | 1100 | 1050 | 1000 | 950 | 950 |
MIN | 180 | 200 | 180 | 180 | 300 | |
B | MAX | 1100 | 900 | 70 | 800 | 800 |
MIN | 70 | 120 | 1100 | 80 | 80 | |
C | MAX | 400 | 200 | 250 | 150 | 150 |
MIN | 15 | 20 | 30 | 25 | 25 | |
5.Features:
Sample
Exhibition in Durpa(Germany) and Beijing.
Exhibition in guangzhou and beijing
Loading photo
Our team
Activity Photo

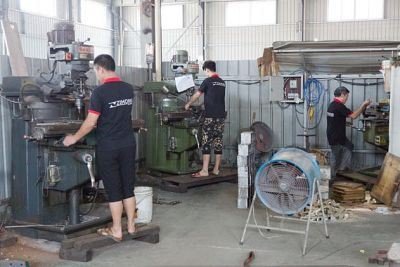

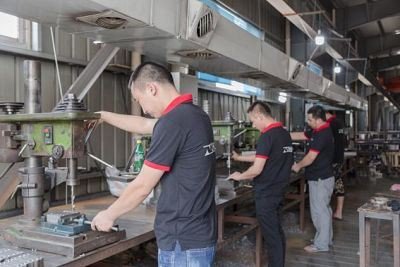

Workshop
According to the new standard to update the production every year
