Automatic Folder Gluer

Automatic Folder Gluer 1. INTRODUCTION: ZH-BH 4/6 Corner Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device..Can make electrical adjusting. Has UV destroying device and…

Product Details

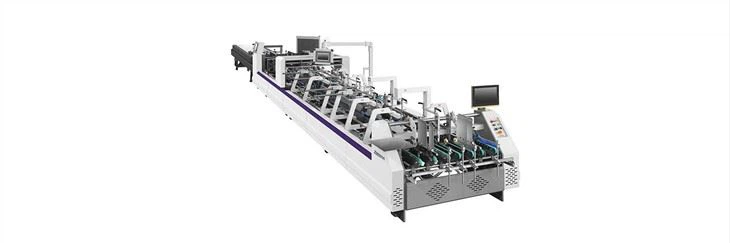

Automatic Folding And Gluing Machine

1. INTRODUCTION:

Automatic Folding And Gluing Machine is a multi function model, which is suit for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device..Can make electrical adjusting. Has UV destroying device and dust removing device for better gluing effect.

Functions: auto feeding, auto correction, creasing, auto alignment, pneumatic box pressing.

2.CHARACTERS:

1.Driving by synchronous belt,ensure smooth and accurate running.

2.Inverter driving,stable and power saving.

3.Use electric adjust, simple operate.

4.Automatic continuous feeding, use multiple belt with vibrating motor, to keep the feeding stable.

5.Automatic counting and kicking,quantity can preset.

6.Conveyer pressure adjustable according to the box to ensure best quality.

7.The machine is configured with remote control, remote troubleshooting, update program.

Straight line box
		ZH-B850-4/6	ZH-B1100-4/6
A	MAX	850	1100
	MIN	80	100
B	MAX	1000	1200
	MIN	60	60
C	MAX	200	300
	MIN	8	8

double sides box
		ZH-B850-4/6	ZH-B1100-4/6
A	MAX	850	1100
	MIN	100	100
B	MAX	800	800
	MIN	70	70
C	MAX	200	300
	MIN	10	10

crash-lock bottom box
		ZH-B850-4/6	ZH-B1100-4/6
A	MAX	800	1100
	MIN	180	150
B	MAX	800	1000
	MIN	40	60
C	MAX	200	300
	MIN	25	30

4-corner box
		ZH-B850-4/6	ZH-B1100-4/6
A	MAX	770	950
	MIN	140	180
B	MAX	550	800
	MIN	60	80
C	MAX	120	150
	MIN	20	25

6-corner box
		ZH-B850-4/6	ZH-B1100-4/6
A	MAX	770	950
	MIN	200	300
B	MAX	500	800
	MIN	80	80
C	MAX	120	150
	MIN	20	25

3.Features：

4.Gluing system

Input voltage	AC220V (±20%) 50-60HZ
Power	480W
Glue-like precision	±1mm
Gel-point	4 types
Model	HBS
Guns	3
To adhesives max viscosity	3000mPas
Each two-way transport efficiency	6:1
Gas source input requirements	2-8bar
Weight	25kg
SIZE	1280480600mm

5.Plasma Surface Treatment

Model	CLEAN-PL-5020
Input voltage	AC220V
Nominal power	1500AV
Plasma power supply frequency	20-30khz
Air supply pressure	60L/m³
Dimension	7209701270
Outlet angle	<20mm
	2 guns
Weight	25kg

6.Samples:

7. Main technical parameter:

Model	ZH-BH850-4/6 Corner	ZH-BH1100-4/6 Corner
Suitable material	Card board 210-800gsm,E/F/N flute corrugated board	Card board 210-800gsm,E/F/N flute corrugated board
Max method	Automatic continuous feeding	Automatic continuous feeding
Max mechanical speed	400m/min	400m/min
Overall dimension	1550014001800mm	1680017001900mm
Weight	8T	8.8T
Power consumption	23KW,380V,50HZ	27KW,380V,50HZ
Weight	7T	8.8T
Compressed air	6 bar,10 m³/h,60 L	6 bar,10 m³/h,60 L
Inching speed	10 m/min	10 m/min
Glue type	Cold glue	Cold glue

8.Machine configuration

Main motor	Siemens
PLC	LS -South Korea
Three Inverter system	LS -South Korea
Two Touch Screen	LS -South Korea
Feeder belt	NITTA Japan
Drive Bearing	NSK Japan
Ribbed belt	Hutchinson (France)
Plain belt	NITTA Japan
Circuit Breaker	Schneider
Rely	Schneider
Button	Schneider
Switch power supply	Schneider
Photo Switch	Panasonic
One Servo motor(control feeder)	VMMORE CHINA (the software from Germany)
Glue spray	KQ CHINA
Double side wall	Double side 20mm
Folding section	Fold section up belt control by shaft, running E/F/N flute more easy.

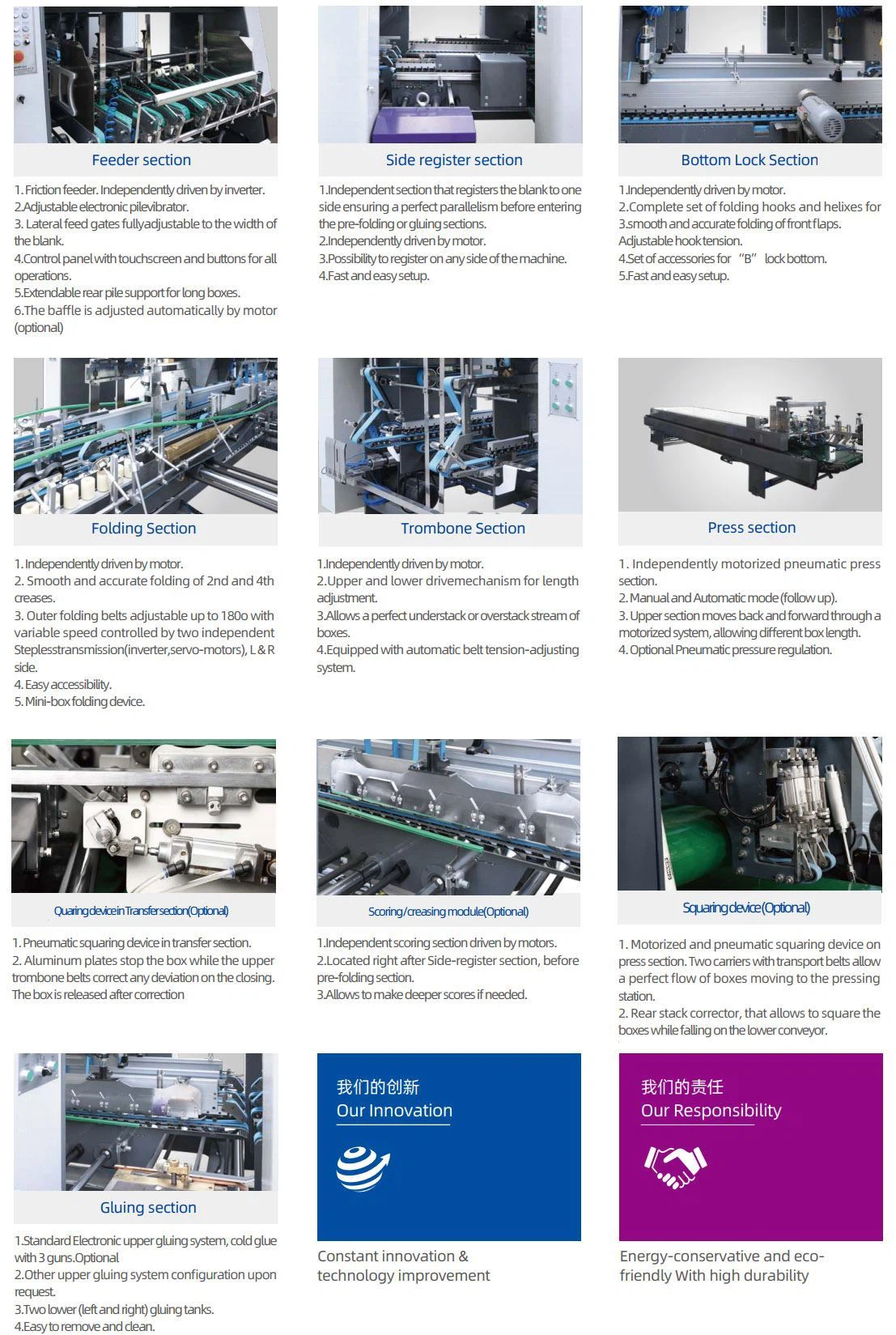

9.Standard & Optional configuration list

	Configuration	Units	Standard	Optional
1	Feeder section		√
2	Paper Alignment Section		√
3	Pre-fold Section		√
4	Crash lock bottom section		√
5	Upper paste barrel equipment
6	Down pasting equipment (double side)		√
7	KQ gluing system 3 guns		√
8	Grinder device		√
9	Plasma treatment system			√
10	Folding and closing section		√
11	Trombone section		√
12	4-6 corner		√
13	Table		√
14	Press section		√
15	Squaring section			√

10.Exhibition：

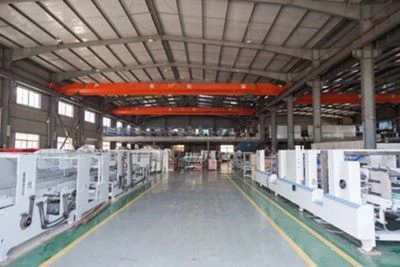

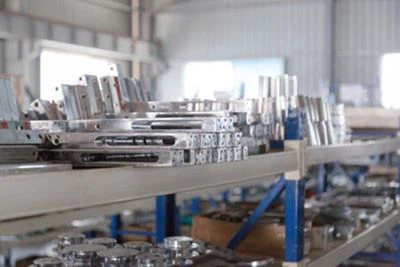

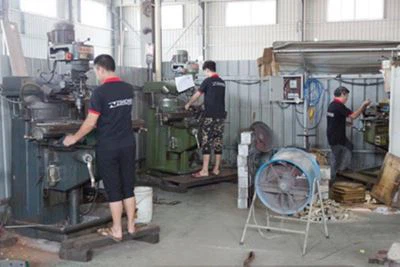

11.Workshop

12.Our team

13.certificate

14. postscript

Delivery : 40 days after receive deposit.

Packing : Film packing and loaded in 1*40GP and 1*20GP, if need wooden packaging need add 1600$.

Payment terms: 1) T/T.30% deposit in advance, and 70% balance before shipped.

Warranty period:12 months

Buyer need to pay ticket, hotel accommodation and food .

Supplier will send one engineer to customer’s factory for installation and training and 100$ salary every day.

According to the situation, packaging and printing companies mainly consider the function, format, price, speed, stability and other indicators of the folder gluer when purchasing the automatic folder gluer machine.

The function of automatic folder gluer machine is one of the important factors for users to consider. If the function is too simple, it will be helpless when encountering a little more complex box products, which will inevitably affect the business expansion. The more functions the device has, the higher the price is. Therefore, on the premise of meeting the product demand, we should also consider the price of the automatic folder gluer machine, that is to say, we should choose the equipment with high cost performance.

Users are also very concerned about the stability and reliability of the automatic folder gluer machine, which requires stable and reliable operation and low failure rate.

In addition to investigating the above indicators, packaging and printing companies should also pay attention to the following matters when purchasing automatic folder gluer machine.
