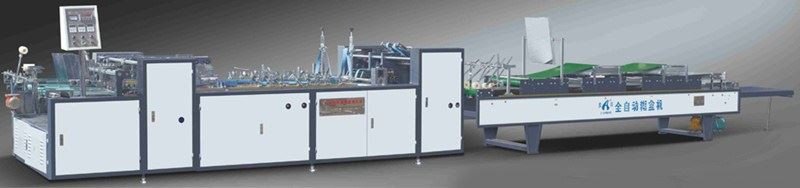

Automatic Folder Gluer with Prefold
The whole machine adopts shaking-resistance structure, so it will not shake while in high-speed running
Product Details
ZH-880C
Prefold Folding Gluing Machine (Casting construction )
1. Features:
With a pre-fold,the machine is applied to automatic packing assembly line,featuring forming easily
(1) The whole machine adopts shaking-resistance structure, so it will not shake while in high-speed running
(2)New synchronous belts and wheels are used in transmission system
(3)Famous imported electrical components are used in the system, there are alarm light and running indicator, which conform to CE standard
(4)Friendly, module design are adopted for the complete machine, it is easy to operate the machine
2. Main technical parameter:
Model | ZH-880C |
Top speed | 220m/min |
Sheet applicable | 210-800gsm card board |
Electric power single phase | 220V,4KW |
A side Max paper in size | 620mm |
A side Min paper in size | 100mm |
B max finished product in size | 320mm |
B min finished product in size | 45mm |
C side longest paper | 700mm |
C side shortest paper | 60mm |
D side min pasting side | 6mm |
Overall dimension | 8000*1100*1300mm |
Weight of machine | 2500kg |
Casting construction | 40mm |
Machine configuration | |
Main motor | suchuang shanghai |
Bearing | made in china |
Wall thickness | 40mm Casting Construction |
Feeding belt | made in china |
Plain belt | made in china |
Low voltage apparatus | CHNT |
Fasten bolts | Level 8.8 tanwan |
