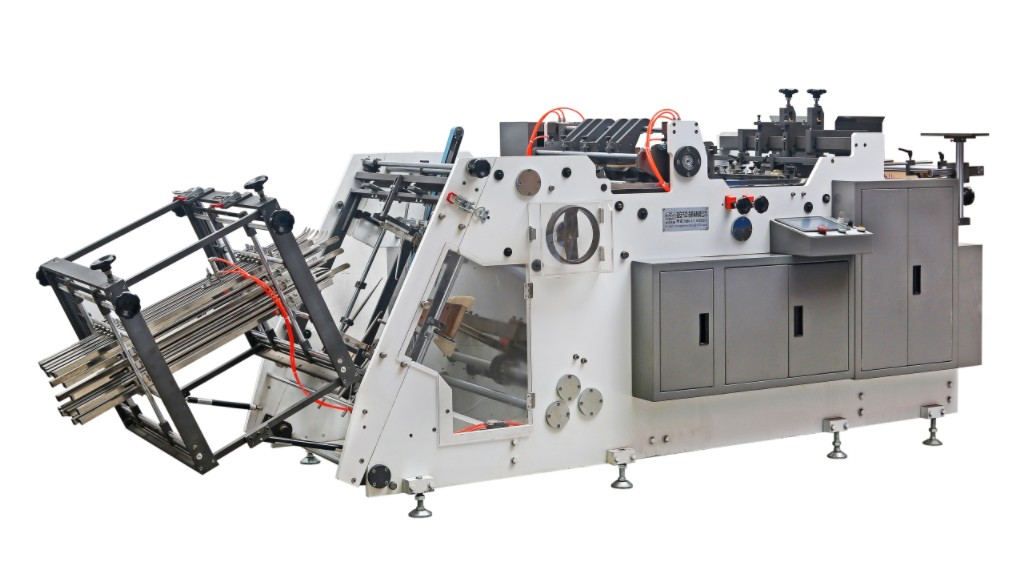

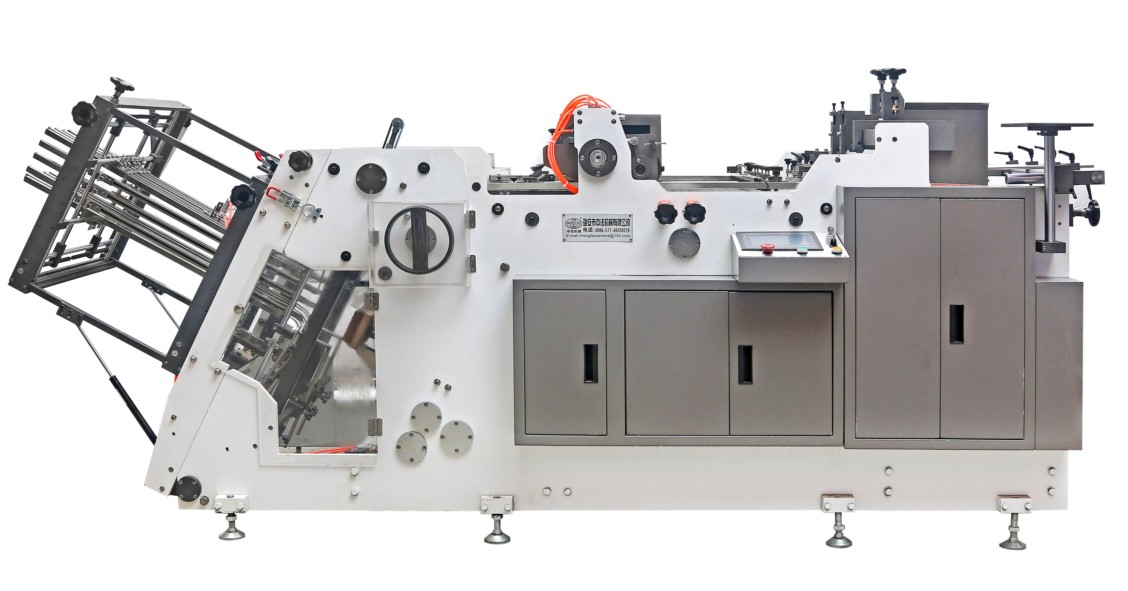

Automatic Paper Carton Erecting Forming Machine

ZF-800 paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc.It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation

Product Details

Automatic Paper Carton Erecting Forming Machine

QUOTATION

型号Type	ZF-800
生产速度Production capacity:	50-180 pcs/min
使用材料Suitable Material:	200-600gsm card paper，PE coated paper, kraft paper, corrugated paper
纸张展开长度 Paper open length:	L100-450mm,degree:5°-40°
纸张展开宽度 Paper open width:	B100-600mm Height H15-200mm
总功率Total Power:	5KW
重量Weight:	1.7T
包装尺寸Dimension:	3600 x1400 x 1700 mm
电源power source	380V 50HZ

Technical Specifications

型号Type	ZF-800
生产速度Production capacity:	50-180 pcs/min
使用材料Suitable Material:	200-600gsm card paper，PE coated paper, kraft paper, corrugated paper
纸张展开长度 Paper open length:	L100-450mm,degree:5°-40°
纸张展开宽度 Paper open width:	B100-600mm Height H15-200mm
总功率Total Power:	5KW
重量Weight:	1.7T
包装尺寸Dimension:	3600 x1400 x 1700 mm
电源power source	380V 50HZ

Remarks:

1) Price Term: FOB NINGBO PORT, CHINA

2) Payment: T/T (30% for deposit, 70% before delivery).

3) Load time: 40 working days at sight the deposit.

4) Packaging: Wooden packing applies to export

5) After sale service:

1. Spare parts guarantee for one year in machine arrival.

2.Send the technician for installation & training. Buyer bears the cost (round tickets, accommodation, and allowance of 100 USD per day).

New Main Features:

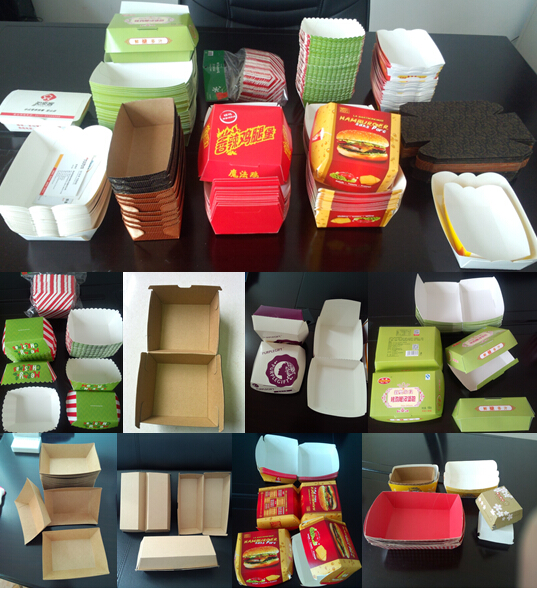

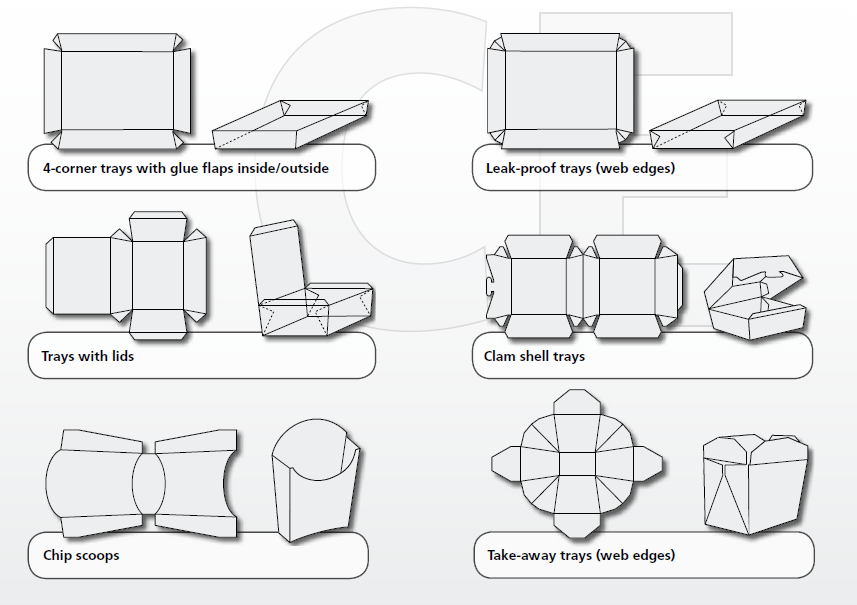

Ø It can make more than 10 types boxes. If the box is not in blow list, please show us your sample.

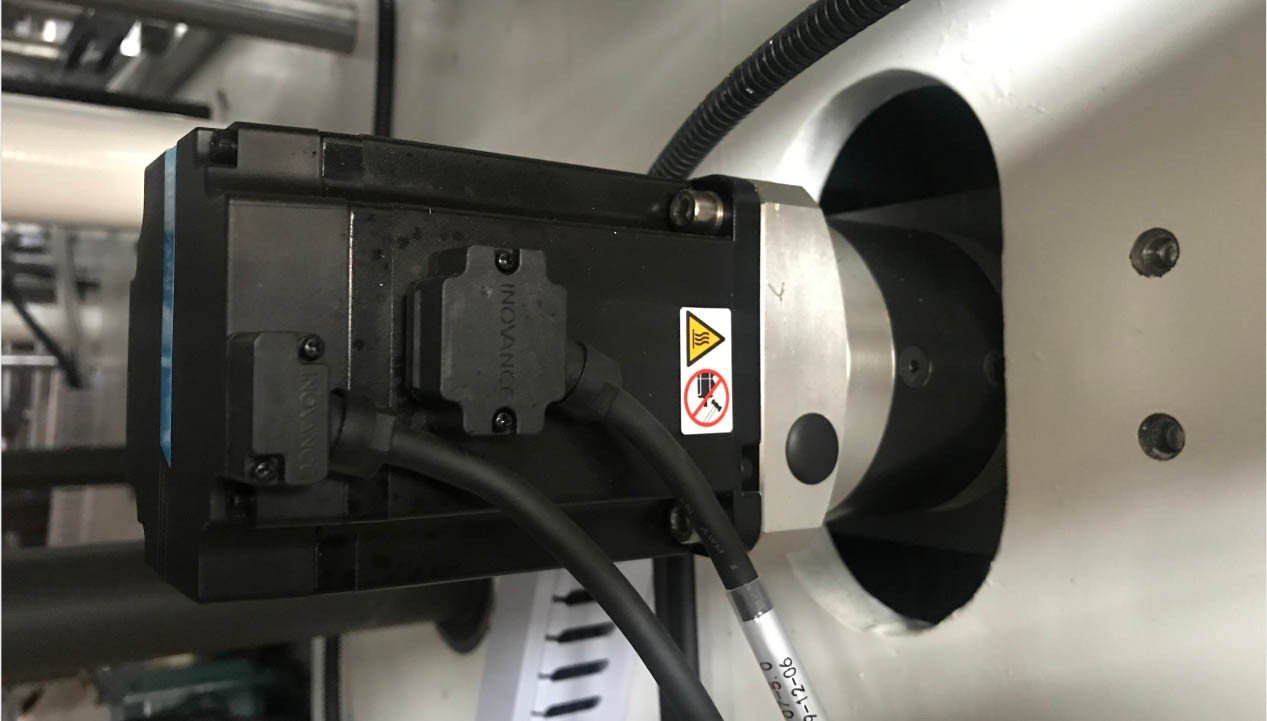

Ø Feeding system:Servo controlled feeding system，Sensor detection system

1.No need the adjust the distance or change different size cam to control feeding .It save the time and more precision when change the mold.

2.Sensor detection to control start and stop feeding and will replace the up down part.Feeding will be much more steady.

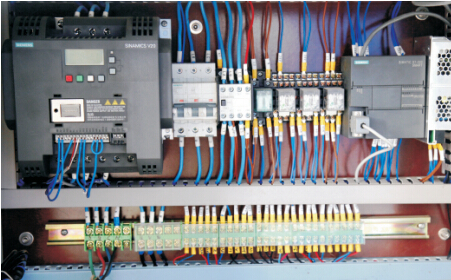

Ø Standard electric box and marked clearly.

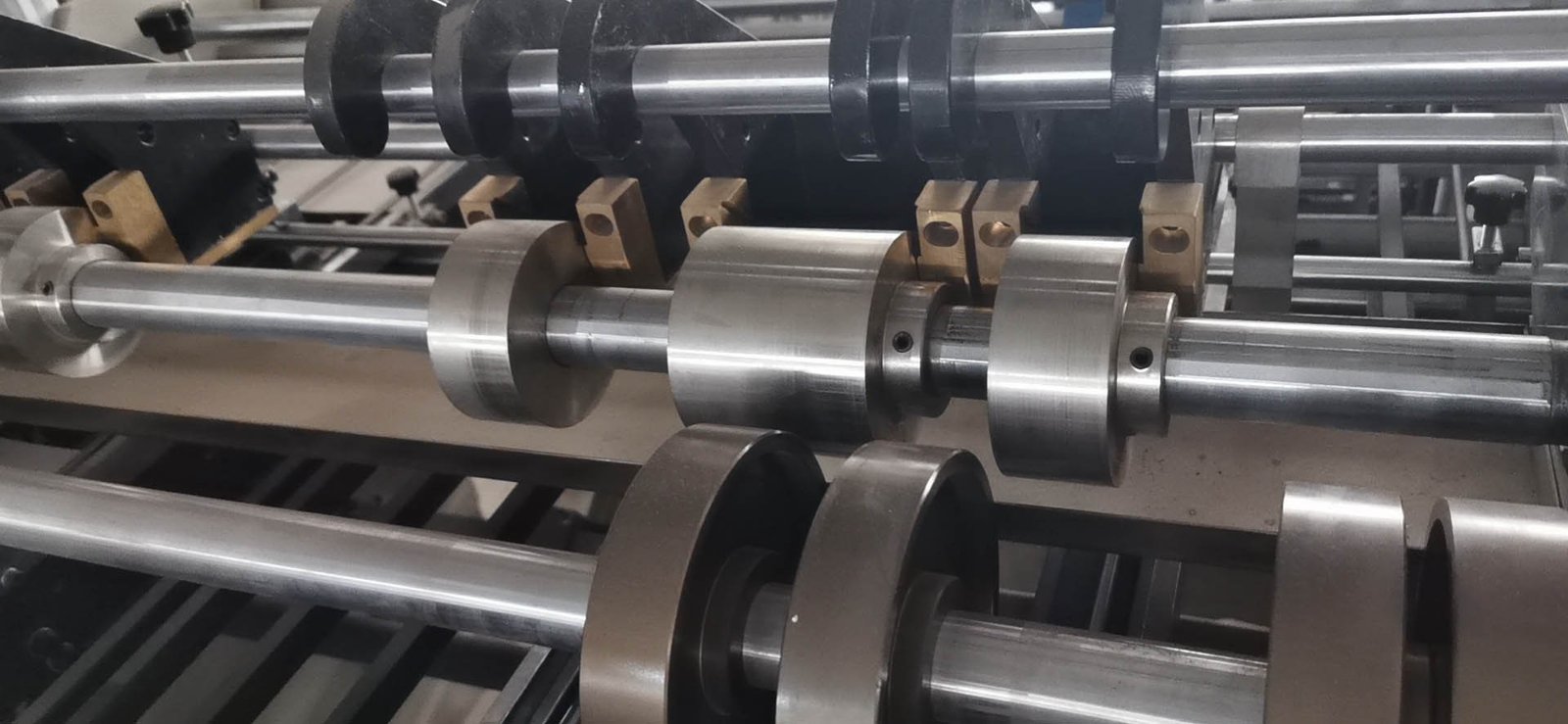

Ø Chain drive system,and reinforce with metal frame and board.

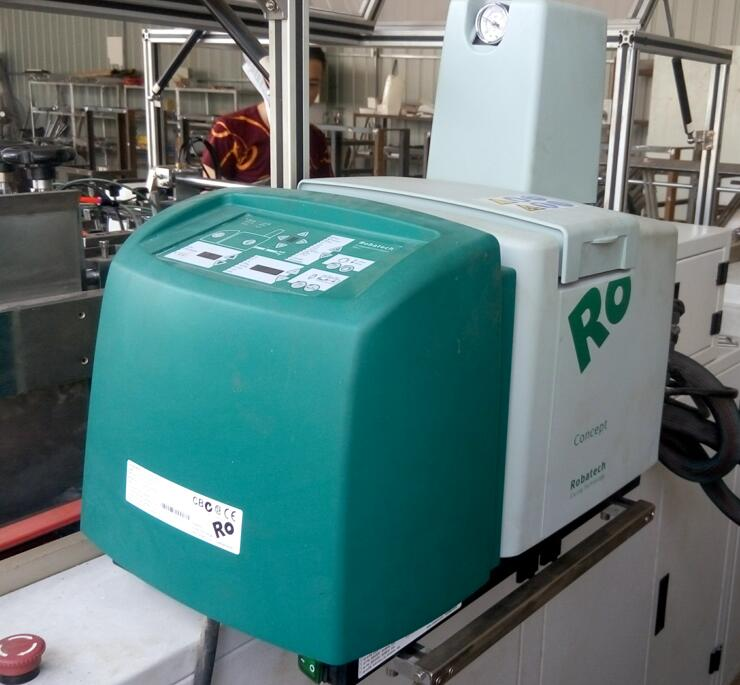

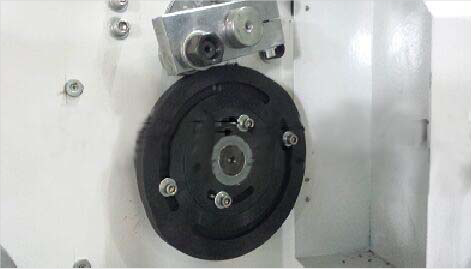

Ø Motor controlled gluing system.Inject glue and change the gluing sponge easily and quickly.

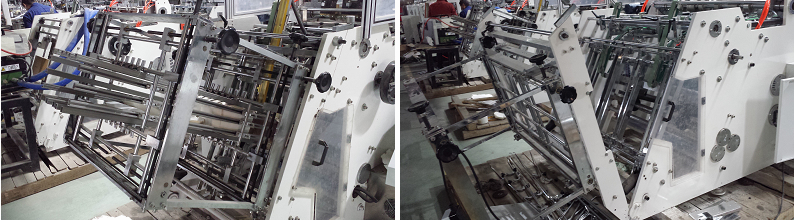

Ø The collecting frame can be opened in three parts.It is easier to install the forming spare part and commissioning.

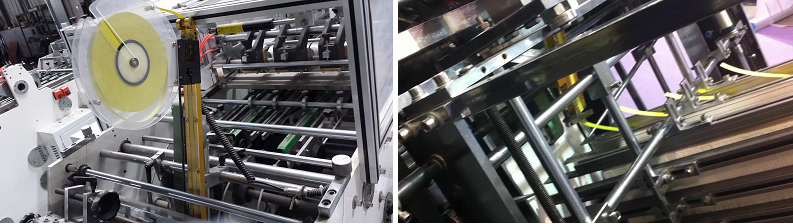

Ø It adapts the paper tape inserter for counting.

Components Brand:

		ZF-800
电机Motor	主电机Main motor	HANSU（CHINA)
	伺服电机 servo motor	RIDING (CHINA)
	胶水电机gluing motor	TAILI（CHINA）
电器 Electric elements	人机微电脑界面HMI	mcgsTpc
	PLC	西门子SIEMENS
	变频器Frequency converter	西门子SIEMENS
	继电器 relay	西门子APT
	低压电器low voltage apparatus	西门子SIEMENS
	按钮 bottom	西门子SIEMENS
	接近/光电开关close o the switch/photoelectric switch	西门子SIEMENS
	开关电源power switch	MEAN WELL (TAIWAN)
气动 Pneumatic	气动部分Main air cylinder	台湾AIRTAC(TAIWAN)
皮带Belt	送纸皮带 paper feeding belt	USA(EP) JIEBAO (CHINA)
皮带Belt	输送皮带 convey belt	USA(EP) JIEBAO (CHINA)
轴承Bearing	主要轴承 Main Bearing	NSK AND HRB
