Automatic Straight Line Box Forming Machine

Semi-automatic pressure jewels sticky box machine is small and medium-sized orders need to be developed according to the user, it covers an area of small volume, convenient operation does not need to experience, suitable for small batch production and variety of replacement.

    Product Details

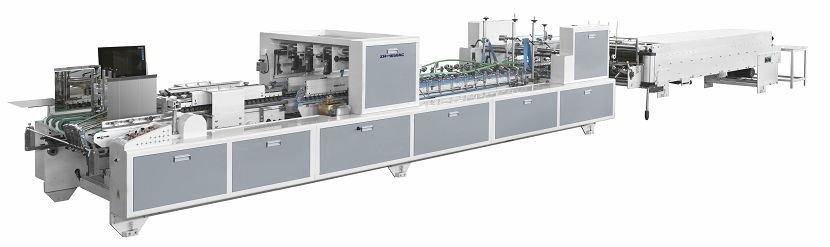

ZH-A1450S folder gluer

1. Characteristics:

Semi-automatic pressure jewels sticky box machine is small and medium-sized orders need to be developed according to the user, it covers an area of small volume, convenient operation does not need to experience, suitable for small batch production and variety of replacement. Applicability is wide and ordinary carton, color box sheet molding glue. Save the glue, glue dosage equivalent to 1/5 of manual coating; Manual, mechanical speed can reach 50 metres per minute, efficiency is 5 to 6 times of the manual operation; The machine adopts manual folding, in improving the efficiency of bad also used throughout automata processing of indentation line is not straight, special shaped window with the surface of paper products.



2. Main technical parameter:

Model

ZH-A1450S

Suitable material

Card board 210gsm-850gsm,E/C/B/AB flute corrugated board

Max method

Automatic continuous feeding

Max mechanical speed

350m/min

Overall dimension

16800*2350*1900mm

Weight

10.5T

Power consumption

18KW,380V,50HZ



3.Standard & Optional configuration list



Configuration

Units

Standard

Optional

1

Feeder section





2

Paper Alignment Section





3

Pre-fold Section



4

Crash lock bottom section



5

Upper paste barrel equipment(Top disc gluing )



6

Down pasting equipment





7

gluing system



8

Grinder device



9

Plasma treatment system



10

Folding and closing section





11

Trombone section





12

Air compressor



13

4-6 corner





4.Machine configuration

Main motor

TECO Taiwan

Touch screen

Siemens

PLC

Siemens

Inverter

Siemens

Ribbed belt

WUTONG

Drive Bearing

NSK

Wall thickness

20mm tempered

Feeding belt

NITTA

Plain belt

NITTA Japan

Circuit Breaker

Schneider

Rely

Schneider

Button

Schneider

Switch power supply

Schneider

Photo Switch

Panasonic









Straight line box



A

MAX

1500

MIN

300

B

MAX

1200

MIN

80

C

MAX

500

MIN

20

5.Features:

1.Feeder Section

2.Paper Alignment System:

3.Down gluing section

4.Pre-fold Section

5.Folding Section

6.Folding Section

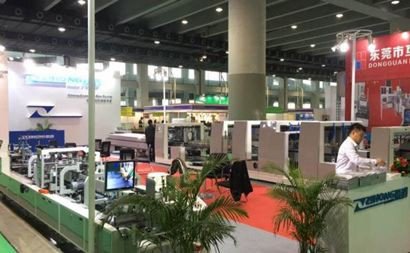

Exhibition in guangzhou and beijing

FAQ:

Q1:How to control the quality?

1.All machine components which enter the factory must be managed personnel by the product and confirmed the quantity is checked and accepted.

2.In charge of personnel use every quantity examine according to design drawing size tool carry on size specification of part to taste.

3.Under the strict quality standard, all machine components are examined by the executive after the product is in charge of personnel’s examining.

4.If examining out the part problematically, return part manufacturers to examine again, guarantee the mechanical quality that the company makes.

Q2: Can you make the machine according to my design or proton type? 

A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us  

Q3: How can we be assured that you will deliver us quality machine with spare parts? 

A:1.Customers to send the technical people to our factory for checking the quality.  

2.We can send the technicians to the buyer`s factory for the installation of the machine

3.Good after sales-service, its free of charge during the warranty period.

Q4: what about the lead time?

A:Normally, 20 days against deposit received, but the delivery time can be adjusted according to

situation.

Q5:Do You have OEM service?

A: Yes, OEM is acceptable. We offer ODM service also

Q6: Do you have overseas service provide after-sales service?

A: Yes, we have overseas support for installation and after-sales service. The technician sent by eerie.

required, but round-trip tickets, visa-charge, eviction fee for technician, and hotel accommodation should .

be paid by buyer.
