Crash Lock Bottom Small Box Folder Gluer
1.Driving by synchronous belt,ensure smooth and accurate running.
2.Inverter driving,stable and power saving.
3.Use electric adjust,easy operate.
Product Details

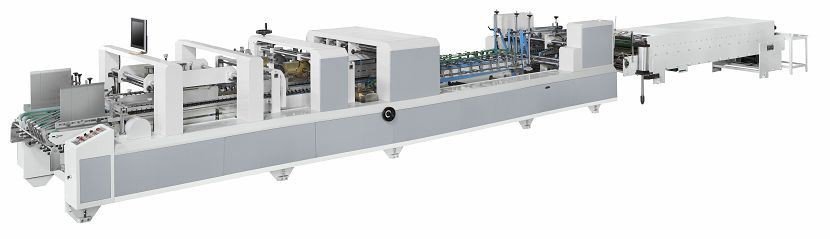

ZH-A580C corner folder gluer
1. Characteristics:
1.Driving by synchronous belt,ensure smooth and accurate running.
2.Inverter driving,stable and power saving.
3.Use electric adjust,easy operate.
4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
5.Automatic counting and kicking,quantity can preset.
6.Conveyer pressure adjustable according to the box to ensure best quality.
2. Main technical parameter:
Model | ZH-A580C |
Suitable material | Card board 210gsm-850gsm |
Max method | Automatic continuous feeding |
Max mechanical speed | 350m/min |
Overall dimension | 11500*1500*1400mm |
Weight | 4.5T |
Power consumption | 9KW,380V,50HZ |

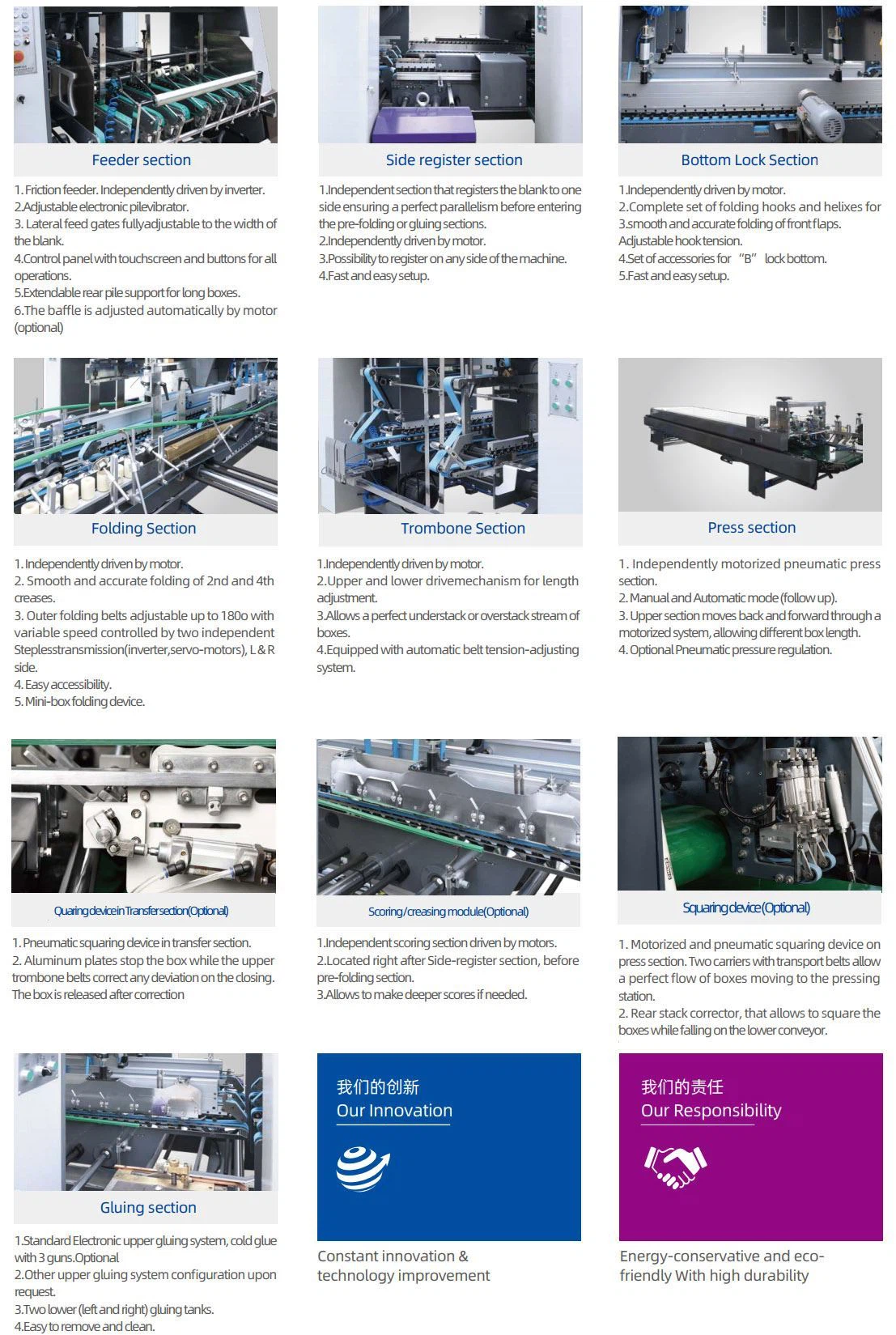

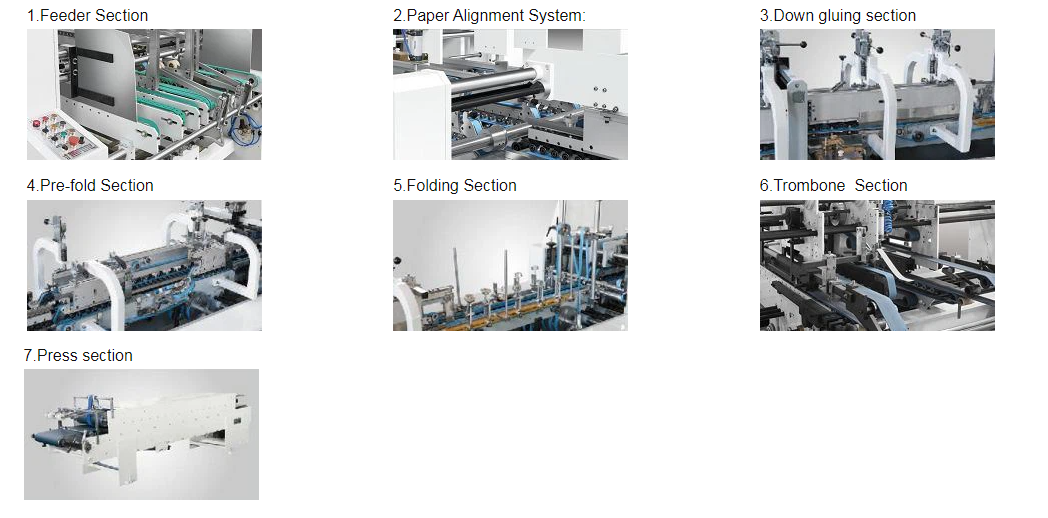

3.Standard & Optional configuration list
Configuration | Units | Standard | Optional | |
1 | Feeder section | √ | ||
2 | Paper Alignment Section | √ | ||
3 | Pre-fold Section | √ | ||
4 | Crash lock bottom section | √ | ||
5 | Upper paste barrel equipment（Top disc gluing ） | √ | ||
6 | Down pasting equipment | √ | ||
7 | gluing system | √ | ||
8 | Grinder device | √ | ||
9 | Plasma treatment system | √ | ||
10 | Folding and closing section | √ | ||
11 | Trombone section | √ | ||
12 | Air compressor | √ | ||
13 | 4-6 corner | √ |
4.Machine configuration
Main motor | TECO Taiwan |
Touch screen | Siemens |
PLC | Siemens |
Inverter | Siemens |
Ribbed belt | WUTONG |
Drive Bearing | NSK |
Wall thickness | 20mm tempered |
Feeding belt | NITTA |
Plain belt | NITTA Japan |
Circuit Breaker | Schneider |
Rely | Schneider |
Button | Schneider |
Switch power supply | Schneider |
Photo Switch | Panasonic |

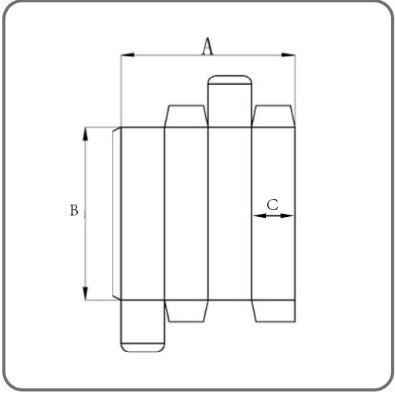

5.Box size
| Straight line box | Double sides box | Crash-lock bottom box | |
A | MAX | 600 | 580 | 520 |
MIN | 100 | 100 | 150 | |
B | MAX | 800 | 600 | 600 |
MIN | 50 | 70 | 50 | |
C | MAX | 200 | 150 | 130 |
MIN | 7 | 10 | 20 | |
6.Features:
Exhibition in guangzhou and beijing
Straight line box | |||
ZH-H850-PC | ZH-H1100-PC | ||
A | MAX | 850 | 1100 |
MIN | 120 | 180 | |
B | MAX | 1000 | 1100 |
MIN | 60 | 70 | |
C | MAX | 200 | 400 |
MIN | 8 | 15 | |
double sides box | |||
ZH-H850-PC | ZH-H1100-PC | ||
A | MAX | 850 | 1100 |
MIN | 100 | 200 | |
B | MAX | 700 | 900 |
MIN | 70 | 120 | |
C | MAX | 200 | 200 |
MIN | 10 | 20 | |
crash-lock bottom box | |||
ZH-H850-PC | ZH-H1100-PC | ||
A | MAX | 800 | 1000 |
MIN | 180 | 180 | |
B | MAX | 800 | 1100 |
MIN | 60 | 70 | |
C | MAX | 200 | 250 |
MIN | 25 | 30 | |
3.Features：
6.Samples:
