Prefold and Crash Lock Bottom Folder Gluer Parts
(1) The machine employs upper and lower tooth-typerods to adjust the drive unit and operate simply.
(2) The paper feeder employ multi-leather belt to drive the vibrating motor.
Product Details
ZH-1050D
Prefold&Bottom lock Folding Gluing Machine (Casting construction )
1. Features:
(1) The machine employs upper and lower tooth-typerods to adjust the drive unit and operate simply.
(2) The paper feeder employ multi-leather belt to drive the vibrating motor.
(3) The lower pasting cylinder and left-right devices are applied to pasting to the bottom and two sides.
It employ the imported stepless frequency regulating speed motor and PLC control system.
2. Main technical parameter:
Model | ZH-1050D |
Top speed | 240m/min |
Sheet applicable | 250-800gsm card board,E corrugated paper |
Electric power single phase | 380V,6.2KW |

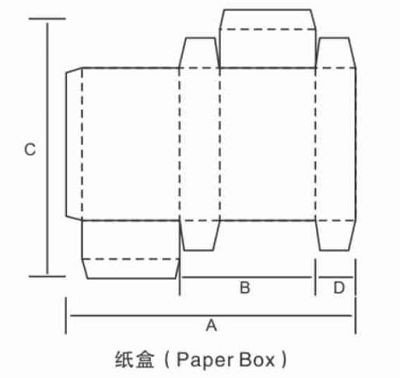

A side Max paper in size | 1050mm |
A side Min paper in size | 250mm |
B max finished product in size | 580mm |
B min finished product in size | 90mm |
C side longest paper | 100mm |
C side shortest paper | 50mm |
D side min pasting side | 8mm |
Overall dimension | 11000*1600*1700mm |
Weight of machine | 5500kg |
Casting construction | 40mm |
Standard & Optional configuration list
Configuration | Units | Standard | Optional | |
1 | Feeder section | √ | ||
2 | Paper Alignment Section | √ | ||
3 | Pre-fold Section | √ | ||
4 | Crash lock bottom section | √ | ||
5 | Upper paste barrel equipment | √ | ||
6 | Down pasting equipment | √ | ||
7 | Gluing system | √ | ||
8 | Grinding part | √ | ||
9 | Plasma treatment system | √ | ||
10 | Folding and closing section | √ | ||
11 | Trombone section | √ | ||
12 | Air compressor | √ |
Machine configuration | |
Main motor | suchuang shanghai |
Main Bearing | NSK |

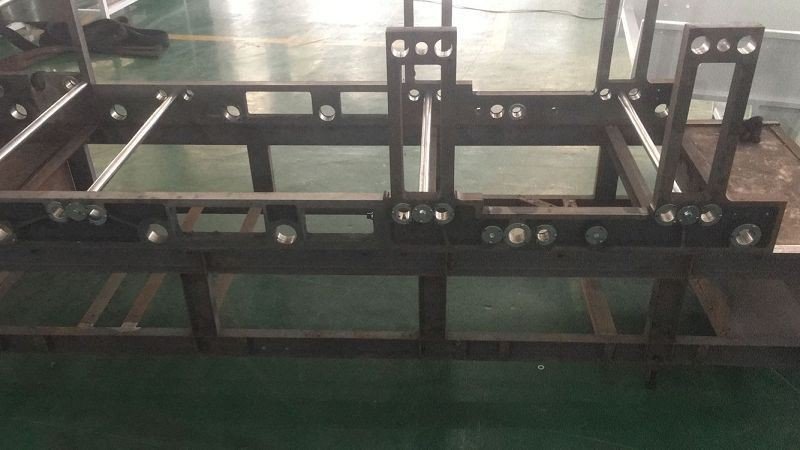

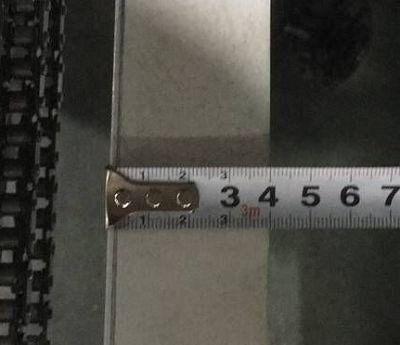

Wall thickness | 40mm Casting Construction |
Feeding belt | NITTA |
Plain belt | made in china |
Low voltage apparatus | Schneider |
Fasten bolts | Level 8.8 tanwan |
3.Feature:
Semi-automatic pressing box adhesive machine is a newly developed product according to the needs of small and medium orders from users. It is small in size, occupies little space, and needs experience for simple operation BU. Fei is often suitable for the production of small batch products and variety replacement.
Scope of application guang, common carton and color box single-page forming adhesive, save glue, the amount of glue is only equivalent to 1/3 of manual glue;
The machine zUI has a high speed of 56 m/min, and the efficiency is 3-4 times that of manual operation.
Bonding firm, neat glue, improve glue bonding, remove the carton factory in some seasons easy to open the carton problem.
This machine adopts manual folding, which not only improves the working efficiency, but also applies to all automatic products with bad indentation lines, special characteristics and paper Windows.

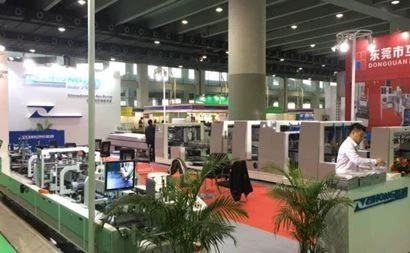

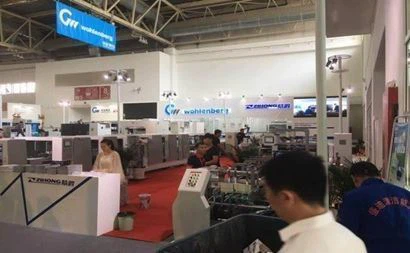

Exhibition in guangzhou and beijing
Our team
