Prefold Crash Lock Bottom Box Folder Gluer
·Box folding, gluing and quality inspection finish at the same timerejected sheet
·It can be used as an independent inspection machine or add it on your folder gluerwithout modify your press
Product Details
ZH-580D
Prefold&bottom lock Folding Gluing Machine (Casting construction )
1. Features:
·Box folding, gluing and quality inspection finish at the same timerejected sheet
·It can be used as an independent inspection machine or add it on your folder gluerwithout modify your press
·It can detect the overall information, including printing quality of both side, die cuttingand supervision code, etc
·Easy software design enable the operators mastered the operation skills within two hours
·Switching new job takes no more than 2 minutes
·The stable detection ability enable the system’s judging standards of rejection closeto human standard pick out the real rejected products and saving cost
2. Main technical parameter:
Model | ZH-580D |
Top speed | 240m/min |
Sheet applicable | 250-800gsm card board,E corrugated paper |
Electric power single phase | 380V,6.2KW |
A side Max paper in size | 580mm |
A side Min paper in size | 110mm |
B max finished product in size | 280mm |
B min finished product in size | 50mm |
C side longest paper | 600mm |
C side shortest paper | 50mm |
D side min pasting side | 8mm |
Overall dimension | 11000*1200*1300mm |
Weight of machine | 3500kg |
Casting construction | 40mm |
3.Standard & Optional configuration list
Configuration | Units | Standard | Optional | |
1 | Feeder section | √ | ||
2 | Paper Alignment Section | √ | ||
3 | Pre-fold Section | √ | ||
4 | Crash lock bottom section | √ | ||
5 | Upper paste barrel equipment | √ | ||
6 | Down pasting equipment | √ | ||
7 | Gluing system | √ | ||
8 | Grinding part | √ | ||
9 | Plasma treatment system | √ | ||
10 | Folding and closing section | √ | ||
11 | Trombone section | √ | ||
12 | Air compressor | √ |
Machine configuration
| Main motor | suchuang shanghai |
Bearing | made in china |
Wall thickness | 40mm Casting Construction |
Feeding belt | made in china |
Plain belt | made in china |
Low voltage apparatus | CHNT |
Fasten bolts | Level 8.8 tanwan |
4.Feature

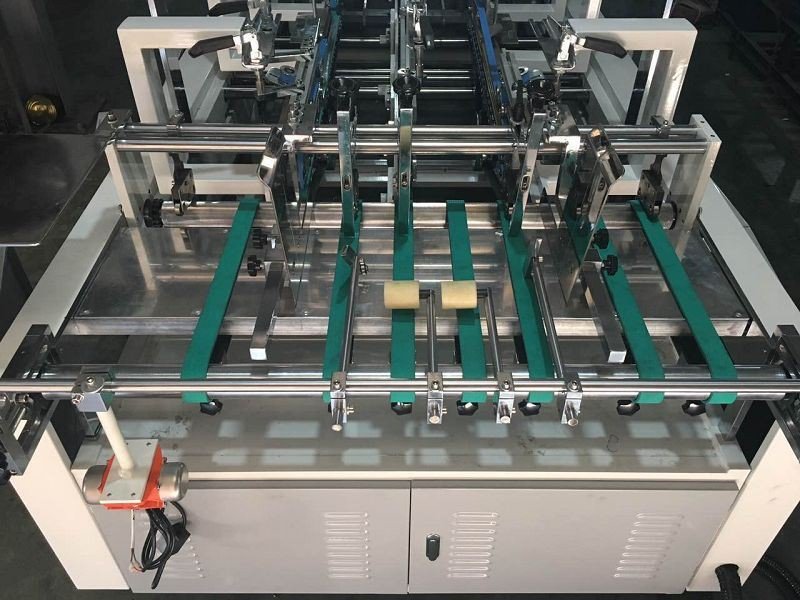

1.Feeder Section
Equipped with vibrating motor.
With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.

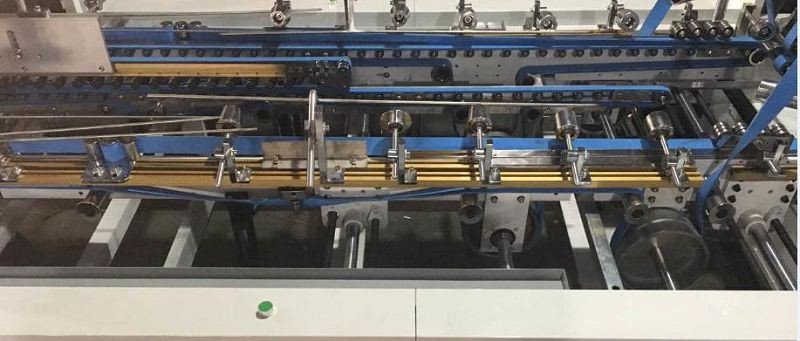

2.Folding Section
2.Folding Section
Longer Folding section convenient adjustment and operation can fold boxes perfectly

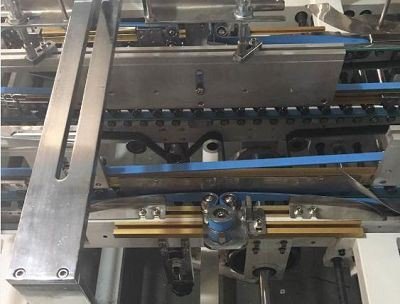

3.Bottom Lock Section
Big-volume design,when the machine is running at high speed,the glue will not go out or leaking .Optionalbottle is good for long time operation.
Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.
Two lower (left and right) gluing tanks.
Easy to remove and clean.
4.Folding Section
Longer Folding section convenient adjustment and operation can fold boxes perfectly

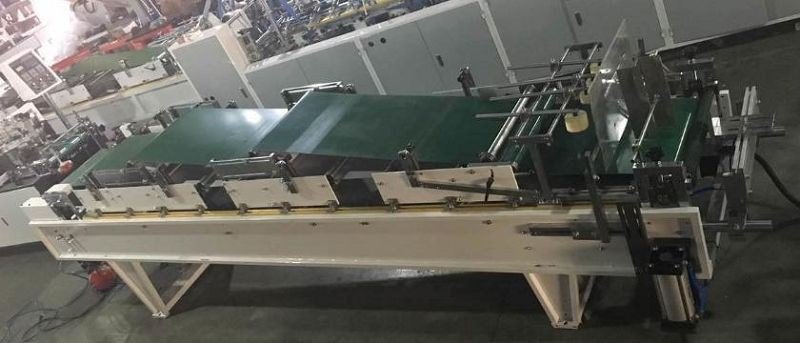

5.Trombone Section
Pressure can be adjusted according to paper thickness.For overlapping and jogger devices are equipped to ensure box gluing well.After kicker is set up,whatever speed the machine runs,the kicker can automatically follow,no need to reset it .

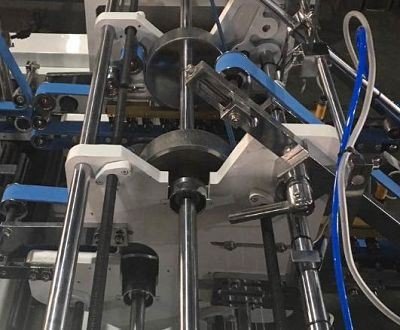

6.Press section
Pneumatic pressure adjustment.
