ZH-AS Series Automatic Folder Gluer

ZH-AS Series Automatic Folder Gluer 1. INTRODUCTION : ZH-AS Series Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board, can do two fold. This model has corectiondevice and bottom lock device. Can make electrical adjusting. Has UV destroying device…

    Product Details

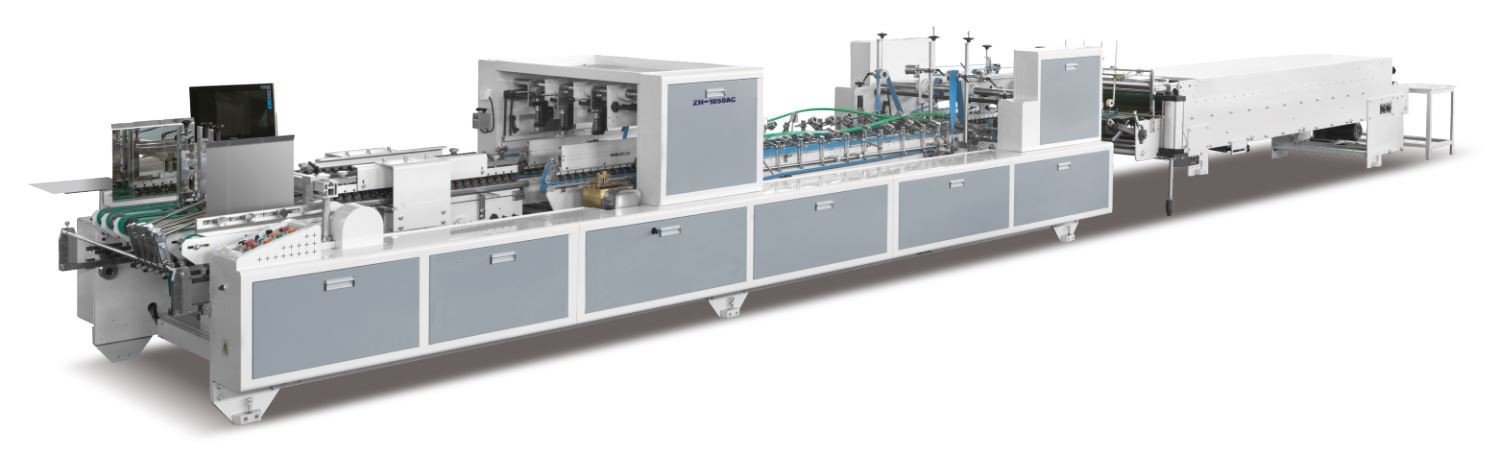

ZH-AS Series Automatic Folder Gluer

1. INTRODUCTION:

ZH-AS Series Automatic Folder Gluer Series Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device. Can make electrical adjusting. Has UV destroying device and dust removing device for better gluing effect.

Functions: auto feeding, auto correction, creasing, auto alignment, pneumatic box pressing.

2.CHARACTERS:

1.Driving by synchronous belt,ensure smooth and accurate running.

2.Inverter driving,stable and power saving.

3.Use electric adjust,easy operate.

4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.

5.Automatic counting and kicking,quantity can preset.

6.Conveyer pressure adjustable according to the box to ensure best quality.

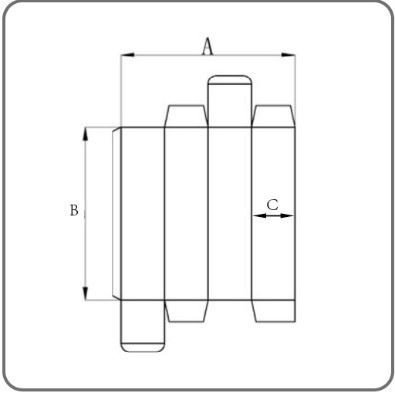

Straight line box



ZH-A580-S

ZH-A780-S

ZH-A1050-S

ZH-A1250-S

ZH-A1450-S

A

MAX

600

800

1100

1300

1500



MIN

100

100

180

180

300

B

MAX

800

1000

1100

1100

1200



MIN

50

60

70

70

80

C

MAX

200

250

400

400

500



MIN

7

8

15

15

20

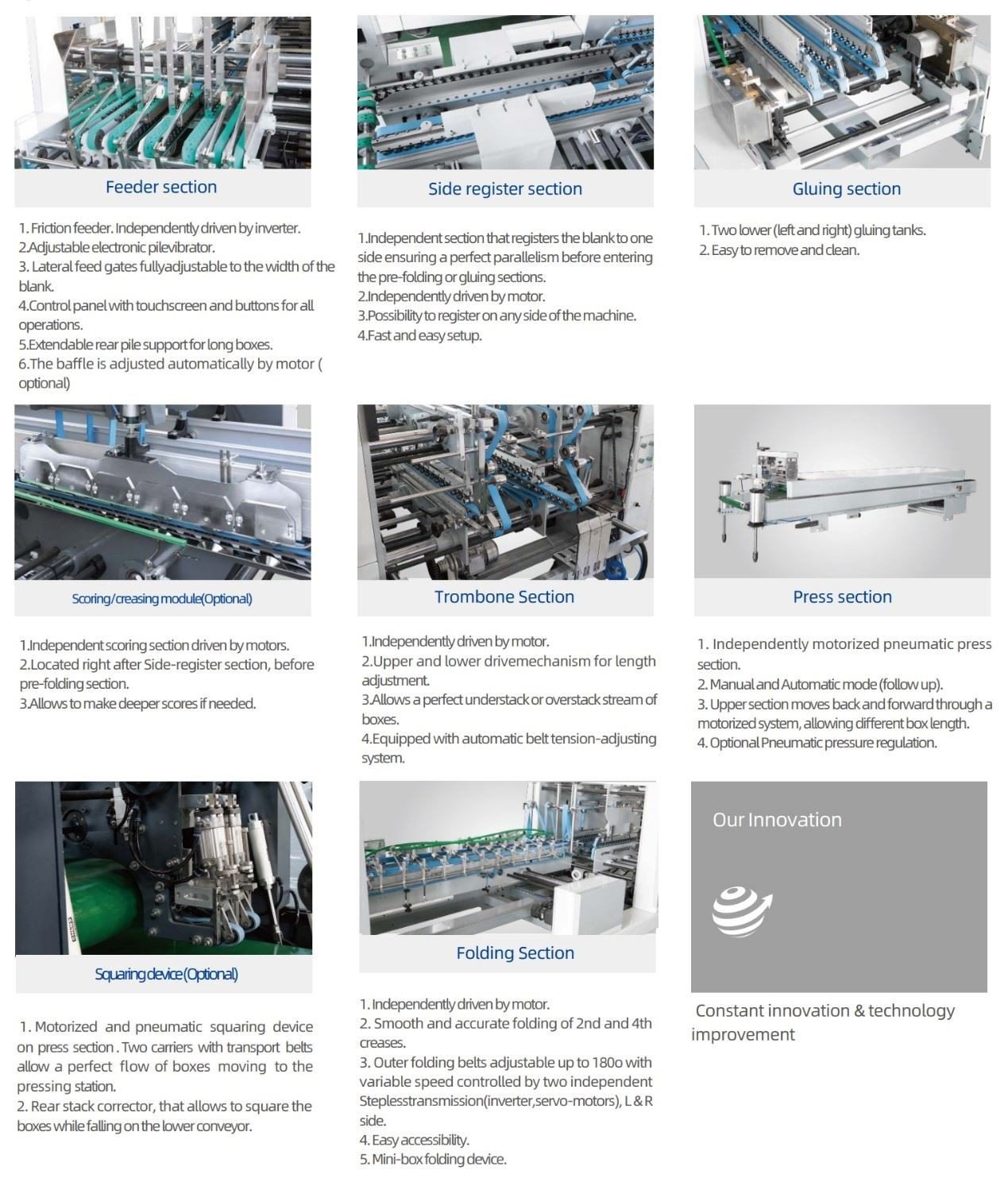

3.Features

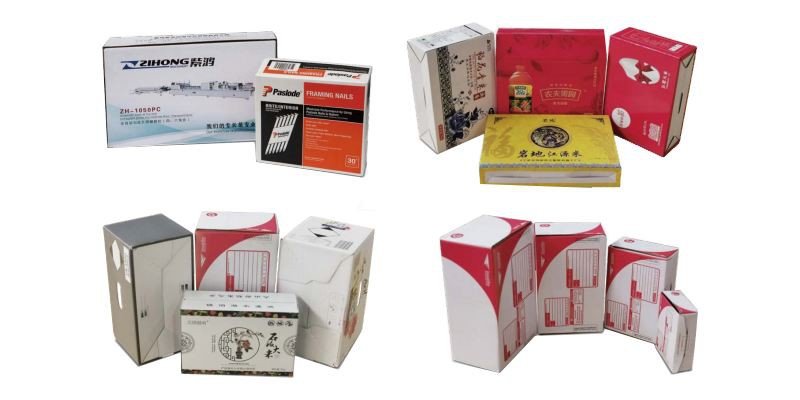

4.Samples:

5. Main technical parameter:





Model

ZH-A580-S

ZH-A780-S

ZH-A1050-S

ZH-A1250-S

ZH-A1450-S

Suitable material

Card board 210gsm-850gsm,E/F flute corrugated board

Card board 210-850gsm,E/F flute corrugated board

Card board 210-850gsm,N/E/F/B flute corrugated board

Card board 210-850gsm,E/C/B/AB flute corrugated board

Card board 210-850gsm,E/C/B/AB flute corrugated board

Max method

Automatic continuous feeding

Automatic continuous feeding

Automatic continuous feeding

Automatic continuous feeding

Automatic continuous feeding

Max mechanical speed

350m/min

350m/min

350m/min

350m/min

350m/min

Overall dimension

10000*1500*1400mm

11800*1500*1400mm

13500*1900*1700mm

15600*2500*1650mm

16800*2350*1900mm

Weight

4T

5T

7.5T

8.5T

10.5T

Power consumption

7KW,380V,50HZ

7KW,380V,50HZ

12KW,380V,50HZ

16KW,380V,50HZ

18KW,380V,50HZ

6.Machine configuration



Main motor

TECO Taiwan

PLC

Siemens

Inverte

Siemens

Touch screen

Siemens

Ribbed belt

Wutong

Bearing

NSK

Wall thickness

20mm tempered

Feeding belt

NITTA

Plain belt

NITTA Japan

Circuit Breaker

Schneider

Rely

Schneider

Button

Schneider

Switch power supply

Schneider

Photo Switch

Panasonic

7.Standard & Optional configuration list





Configuration

Units

Standard

Optional

1

Feeder section





2

Paper Alignment Section





3

Pre-fold Section



4

Crash lock bottom section



5

Upper paste barrel equipment



6

Down pasting equipment





7

Gluing system



8

Grinder device



9

Plasma treatment system



10

Folding and closing section





11

Trombone section



12

Air compressor



13

4-6 corner

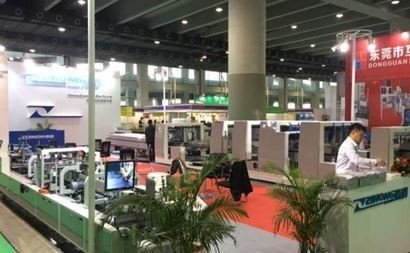

8.Exhibition

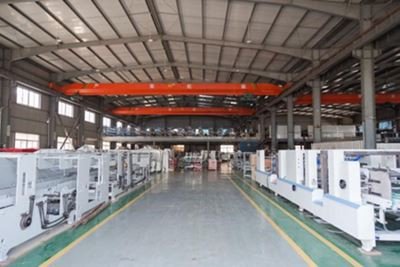

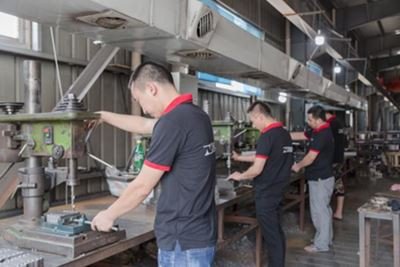

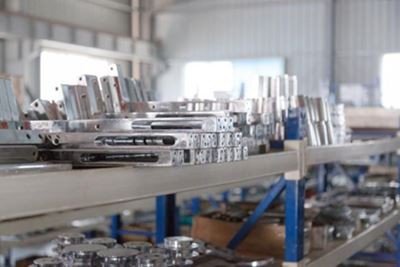

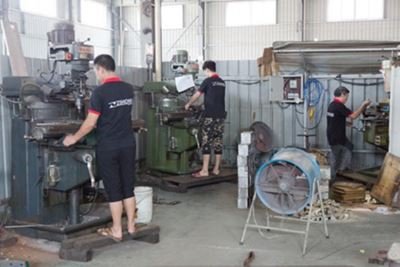

9.Workshop

10.Our team

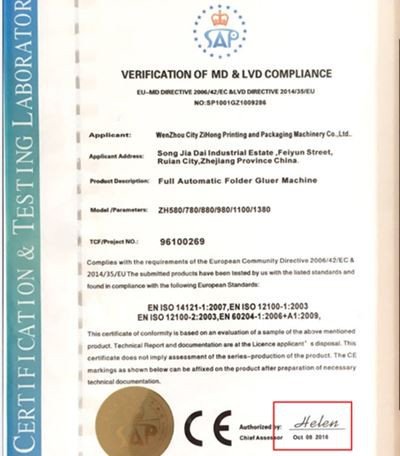

11.certificate

12. postscript

Optional:      4-6   corner part (with KEQI brand gluing system)

                  4-6 corner part (with HHS brand gluing system)

 Plasma 2 guns

Delivery : 40 days after receive deposit.



Packing : Film packing and loaded in 1*40GP and 1*20GP, if need wooden   packaging need add 1600$.



Payment terms: 1) T/T.30% deposit in advance, and 70% balance before   shipped.



Warranty period:12 months



Buyer need to pay travel expenses(ticket),hotel accommodation,food .

Supplier will send one engineer to customer’s factory for installation   and training ,100$ salary every day.

For the video send by whatsapp.



FAQ:

Q1:Where have you exported your equipment?

A:We’ve already exported to more than 30 countries in Asia, Europe, Middle East, Africa, South America,etc.

Q2:Can you arrange the visit to your user?

A:yes

Q3:Can you customize the machine according to our requirements?

A:yes

Q4:Is your equipment in accordance with GMP, FDA, WH0?

A:Yes, we will design and manufacture the equipment according to the requirement of GMP/FDA/WHO in your country,.

Q5:What is your payment terms?

A:Generally, TT or irrevocable L/C at sight.

Q6:How about your after-sales service?

A:We will reply you within 24 hours by email or phone

If we have local agent, we will arrange him to your site within 24 hours to assist you to solve problem

Q7:How long is your air compressor warranty?

A:One year for the whole machine and two years for screw air end, except consumable spare 

parts.

Q8:How long could your air compressor be used?

A:Generally, more than 10 years.

Q9: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q10: Can you guarantee your quality?

A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
