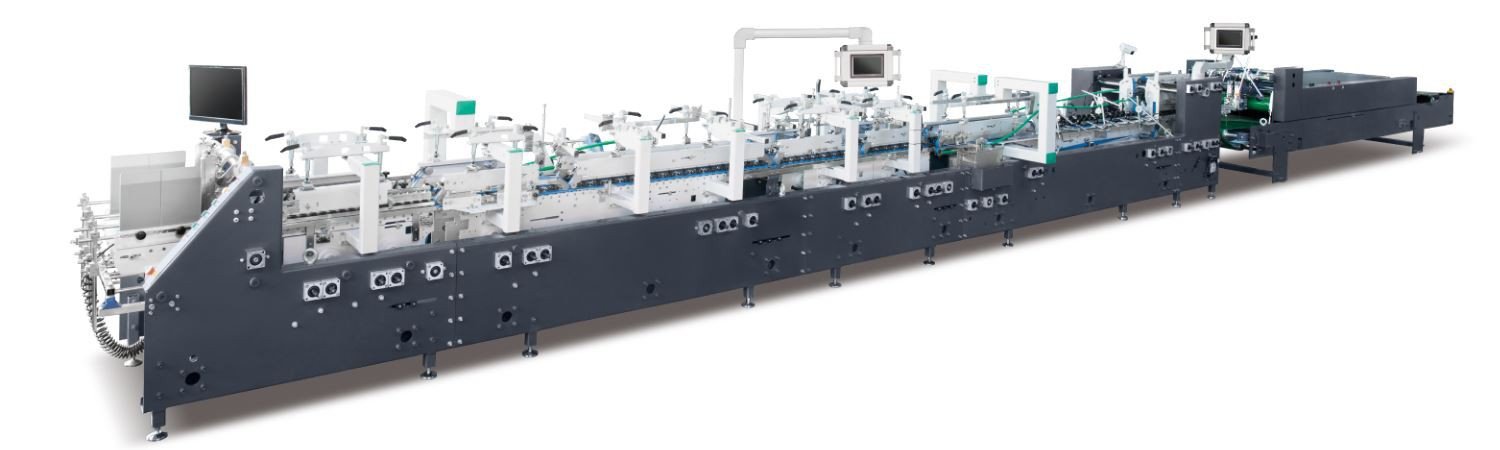

ZH-B 4/6 Corner Automatic Folder Gluer

ZH-B 4/6 Corner Automatic Folder Gluer 1. INTRODUCTION : ZH-B 4/6 Corner Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board, can do two fold. This model has corectiondevice and bottom lock device. Can make electrical adjusting. Has UV destroying device and dust removing…

Product Details

ZH-B 4/6 Corner Automatic Folder Gluer

1. INTRODUCTION:

ZH-B 4/6 Corner Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device..Can make electrical adjusting. Has UV destroying device and dust removing device for better gluing effect.

Functions: auto feeding, auto correction, creasing, auto alignment, pneumatic box pressing.

2.CHARACTERS:

1.Driving by synchronous belt,ensure smooth and accurate running.

2.Inverter driving,stable and power saving.

3.Use electric adjust,easy operate.

4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.

5.Automatic counting and kicking,quantity can preset.

6.Conveyer pressure adjustable according to the box to ensure best quality.

Straight line box
		ZH-B850-4/6	ZH-B1100-4/6
A	MAX	850	1100
	MIN	120	180
B	MAX	1000	1100
	MIN	60	70
C	MAX	200	400
	MIN	8	15

double sides box
		ZH-B850-4/6	ZH-B1100-4/6
A	MAX	850	1100
	MIN	100	200
B	MAX	700	900
	MIN	70	120
C	MAX	200	200
	MIN	10	20

crash-lock bottom box
		ZH-B850-4/6	ZH-B1100-4/6
A	MAX	800	1000
	MIN	180	180
B	MAX	800	1100
	MIN	60	70
C	MAX	200	250
	MIN	25	30

4-corner box
		ZH-B850-4/6	ZH-B1100-4/6
A	MAX	770	960
	MIN	140	180
B	MAX	500	800
	MIN	60	80
C	MAX	120	150
	MIN	20	25

6-corner box
		ZH-B850-4/6	ZH-B1100-4/6
A	MAX	770	950
	MIN	200	300
B	MAX	500	800
	MIN	80	80
C	MAX	120	150
	MIN	20	25

3.Features：

4.Samples:

5. Main technical parameter:

Model	ZH-B850-4/6 Corner	ZH-B1100-4/6 Corner
Suitable material	Card board 210-850gsm,E/F flute corrugated board	Card board 210-850gsm,E/F flute corrugated board
Max method	Automatic continuous feeding	Automatic continuous feeding
Max mechanical speed	400m/min	400m/min
Overall dimension	1550014001800mm	1550017001800mm
Weight	7T	8T
Power consumption	23KW,380V,50HZ	23KW,380V,50HZ

6.Machine configuration

Main motor	Siemens
PLC	Siemens
Inverte	VEICHI
Touch screen	VEICHI
Feeder belt	NITTA jAPAN
Ribbed belt	NSK JAPAN
Bearing	20mm tempered
Plain belt	NITTA Japan
Low voltage apparatus	Schneider
Delta servo system	For 4&6 corner box Form Taiwan
Glue spray	For 4&6 corner box KEQI Brand gluing system

7.Standard & Optional configuration list

	Configuration	Units	Standard	Optional
1	Feeder section		√
2	Paper Alignment Section		√
3	Pre-fold Section		√
4	Crash lock bottom section		√
5	Upper paste barrel equipment		√
6	Down pasting equipment		√
7	Gluing system		√
8	Grinder device			√
9	Plasma treatment system			√
10	Folding and closing section		√
11	Trombone section		√
12	Air compressor		√
13	4-6 corner		√

8.Exhibition：

9.Workshop

10.Our team

11.certificate

12. postscript

Delivery : 40 days after receive deposit.

Packing : Film packing and loaded in 1*40GP and 1*20GP, if need wooden packaging need add 1600$.

Payment terms: 1) T/T.30% deposit in advance, and 70% balance before shipped.

Warranty period:12 months

Buyer need to pay travel expenses(ticket),hotel accommodation,food .

Supplier will send one engineer to customer’s factory for installation and training ,100$ salary every day.

For the video send by whatsapp.

FAQ:

Q1:Where have you exported your equipment?

A:We’ve already exported to more than 30 countries in Asia, Europe, Middle East, Africa, South America,etc.

Q2:Can you arrange the visit to your user?

A:yes

Q3:Can you customize the machine according to our requirements?

A:yes

Q4:Is your equipment in accordance with GMP, FDA, WH0?

A:Yes, we will design and manufacture the equipment according to the requirement of GMP/FDA/WHO in your country,.

Q5:What is your payment terms?

A:Generally, TT or irrevocable L/C at sight.

Q6:How about your after-sales service?

A:We will reply you within 24 hours by email or phone

If we have local agent, we will arrange him to your site within 24 hours to assist you to solve problem

Q7:How long is your air compressor warranty?

A:One year for the whole machine and two years for screw air end, except consumable spare 

parts.

Q8:How long could your air compressor be used?

A:Generally, more than 10 years.

Q9: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q10: Can you guarantee your quality?

A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
