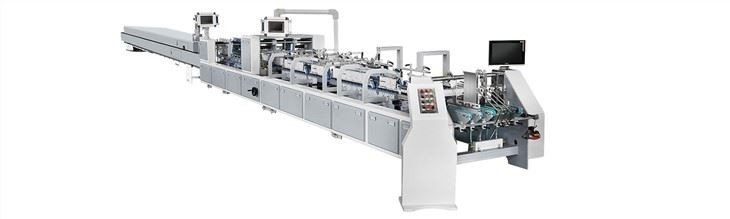

ZH-H PC Corner Folder Gluer
ZH-H PC Corner Folder Gluer 1. INTRODUCTION: ZH-H PC Corner Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device..Can make electrical adjusting. Has UV destroying device and dust…
Product Details
ZH-M 4/6 Corner Automatic Folder Gluer
1. INTRODUCTION:
ZH-H PC Corner Automatic Folder Gluer is a multi function model, suitable for card board, EB flute corrugated board. This model has corectiondevice.Can select bottom lock device..Can make electrical adjusting. Has UV destroying device and dust removing device for better gluing effect.
Functions: auto feeding, auto correction, creasing, auto alignment, pneumatic box pressing.
2.CHARACTERS:
1.Driving by synchronous belt,ensure smooth and accurate running.
2.Inverter driving,stable and power saving.
3.Use electric adjust,easy operate.
4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.
5.Automatic counting and kicking,quantity can preset.
6.Conveyer pressure adjustable according to the box to ensure best quality.
Straight line box | |||
ZH-H850-PC | ZH-H1100-PC | ||
A | MAX | 850 | 1100 |
MIN | 120 | 180 | |
B | MAX | 1000 | 1100 |
MIN | 60 | 70 | |
C | MAX | 200 | 400 |
MIN | 8 | 15 | |
double sides box | |||
ZH-H850-PC | ZH-H1100-PC | ||
A | MAX | 850 | 1100 |
MIN | 100 | 200 | |
B | MAX | 700 | 900 |
MIN | 70 | 120 | |
C | MAX | 200 | 200 |
MIN | 10 | 20 | |
crash-lock bottom box | |||
ZH-H850-PC | ZH-H1100-PC | ||
A | MAX | 800 | 1000 |
MIN | 180 | 180 | |
B | MAX | 800 | 1100 |
MIN | 60 | 70 | |
C | MAX | 200 | 250 |
MIN | 25 | 30 | |
3.Features：
4.Samples:
5. Main technical parameter:
Model | ZH-B850-PC | ZH-B1100-PC |
Suitable material | Card board 210gsm-850gsm E flute cormugated board | Card board 210gsm-850gsm E flute cormugated board |
Max method | Automatic continuous feeding | Automatic continuous feeding |
Max mechanical speed | 450m/min | 450m/min |
Overall dimension | 15500*1400*1800mm | 15500*1700*1800mm |
Weight | 7T | 8T |
Power consumption | 18KW,380V,50HZ | 19KW,380V,50HZ |
6.Machine configuration
Main motor | Siemens |
PLC | Siemens |
Inverte | VEICHI |
Touch screen | VEICHI |
Feeder belt | NITTA jAPAN |
Ribbed belt | NSK JAPAN |
Bearing | 20mm tempered |
Plain belt | NITTA Japan |
Low voltage apparatus | Schneider |
7.Standard & Optional configuration list
Configuration | Units | Standard | Optional | |
1 | Feeder section | √ | ||
2 | Paper Alignment Section | √ | ||
3 | Pre-fold Section | √ | ||
4 | Crash lock bottom section | √ | ||
5 | Down pasting equipment | √ | ||
6 | Gluing system | √ | ||
7 | Grinder device | √ | ||
8 | Plasma treatment system | √ | ||
9 | Folding and closing section | √ | ||
10 | Trombone section | √ | ||
11 | 4-6 corner | √ |
8.Exhibition：
9.Workshop
10.Our team
11.certificate
12. postscript
Delivery : 40 days after receive deposit.
Packing : Film packing and loaded in 1*40GP and 1*20GP, if need wooden packaging need add 1600$.
Payment terms: 1) T/T.30% deposit in advance, and 70% balance before shipped.
Warranty period:12 months
Buyer need to pay travel expenses(ticket),hotel accommodation,food .
Supplier will send one engineer to customer’s factory for installation and training ,100$ salary every day.
For the video send by whatsapp.
FAQ:
Q1:Where have you exported your equipment?
A:We’ve already exported to more than 30 countries in Asia, Europe, Middle East, Africa, South America,etc.
Q2:Can you arrange the visit to your user?
A:yes
Q3:Can you customize the machine according to our requirements?
A:yes
Q4:Is your equipment in accordance with GMP, FDA, WH0?
A:Yes, we will design and manufacture the equipment according to the requirement of GMP/FDA/WHO in your country,.
Q5:What is your payment terms?
A:Generally, TT or irrevocable L/C at sight.
Q6:How about your after-sales service?
A:We will reply you within 24 hours by email or phone
If we have local agent, we will arrange him to your site within 24 hours to assist you to solve problem
Q7:How long is your air compressor warranty?
A:One year for the whole machine and two years for screw air end, except consumable spare
parts.
Q8:How long could your air compressor be used?
A:Generally, more than 10 years.
Q9: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q10: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
